"Audi's fourth generation A8 finally hits the streets with souped-up technology such as plug-in hybrid e-tron version and rear axle dynamic steering integrated into quattro system. Two three-liter diesel and two four-liter petrol engines are among powertrain options for the flagship sedan. There's also the exclusive W12 for high-end customers. The plug-in hybrid version is powered by a three-liter petrol engine and an electric motor which will take you up to 31.1 miles on full charge. For more info check out the press release below:" Ed.

The new Audi A8 presents the future of the luxury class. In its fourth generation, the brand’s flagship model again provides the benchmark for Vorsprung durch Technik – with a new design language, an innovative touchscreen operating concept and a systematically electrified drive. The Audi A8 is also the first production automobile in the world to have been developed for highly automated driving. From 2018, Audi will gradually be taking piloted driving functions such as parking pilot, garage pilot and traffic jam pilot into production.

Doyen of style: the exterior design

The Audi A8 is stylistically defining – it signals the dawning of a new design era for the entire brand. The front end with the wide, upright Singleframe grille and the fluid, muscular body symbolize sporty elegance, sophistication and progressive status. The new A8 delivers on the promise made by the Audi prologue design study. The luxury sedan possesses a powerful presence – whether in the 5.17 meter (17.0 ft) standard version or the A8 L, which has a 13 centimeter (5.1 in) longer wheelbase.

The Audi brand is renowned worldwide for sports appeal, lightweight construction and quattro permanent all-wheel drive – and the design of the new A8 conveys these values. The balanced proportions emphasize all four wheels in equal measure. Muscular shapes above the wheel arches give visual expression to the quattro drive. Viewed side-on, the upright front end combined with the gently inclined rear create visual tension. The flagship model proclaims its identity both day and night, drawing on both the striking HD Matrix LED headlights with Audi laser lighting, and the LED light strip combined with OLED technology rear lights. These produce unique light animations as the driver approaches and leaves the car.

Luxury lounge: the interior

Freedom is the defining design feature with a new luxury slant. This explains the A8’s resemblance to a lavish, spacious lounge. Compared to the predecessor model, it has grown substantially in length in both body versions. The range of equipment and materials is extensive, with every detail radiating superlative bespoke quality – from the perforation in the seat upholstery to the electrically opened and closed shutters on the air vents.

The classiest seat in the new Audi flagship model is in the rear right – the optional relaxation seat in the A8 L that comes with four different adjustment options and a footrest. In this seat, the passenger can warm and massage the soles of their feet on a unit with multiple settings incorporated into the back of the front-passenger seat. The new comfort head restraints complete the experience. The rear passengers can also control an array of functions such as ambient lighting, the new HD Matrix reading lights and seat massage, plus make private phone calls, via a separate operating unit. The rear seat remote, with its OLED display as large as a smartphone, is a removable unit housed in the center armrest.

Fingertip response: the controls

The luxury sedan’s interior deliberately adopts a reductive design; the interior architecture is clear and with a strictly horizontal orientation. Audi carries its high quality standards into the digital age with a radically new operating concept. It does away with the familiar rotary pushbutton and touchpad of the predecessor model. The instrument panel is kept largely clear of buttons and switches. At its center is a 10.1-inch touchscreen display which, when off, blends almost invisibly into the high-gloss black surround thanks to its black-panel look.

The user interface appears as soon as the car is opened. The driver controls the Infotainment system with fingertip control on the large display. They can use a second touchscreen display on the center tunnel console to access the air conditioning and comfort functions as well as make text inputs. While doing so, they can rest their wrist comfortably on the wide tiptronic selector lever, for extra ease of inputting a navigation destination, for example. When the driver activates a function in the upper or lower display, they hear and feel a click by way of confirmation. The glass-look operating buttons respond in the same way. The combination of acoustic and tactile feedback along with the use of common touch gestures such as swiping make the new MMI touch response especially safe, intuitive and quick to use.

The A8 can also engage in intelligent conversation. The driver can activate an array of functions in the automobile using a new, natural form of voice control. Information on destinations and media is either available on board or is delivered from the cloud at LTE speed. The extensive Audi connect range also includes traffic sign recognition and hazard information – innovative car-to-X services that draw on the swarm intelligence of the Audi fleet.

The extensively optimized navigation is another new feature: It is self-learning, based on the route just driven. This provides the driver with intelligent search suggestions. The map also incorporates highly detailed 3D models of major European cities for a more realistic representation.

The latest version of the Modular Infotainment Platform, the MIB 2+, serves as the control hub for all these functions. It integrates a cutting-edge K1 processor by the Audi venture partner NVIDIA. A second K1 chip generates the graphics on the Audi virtual cockpit, which as the digital instrument cluster offers a full HD resolution of 1,920 x 720 pixels.

And the Bang & Olufsen Advanced Sound System delivers a new spatial experience: for the first time the rear seats are included in its fascinating 3D sound with height information. The music unfolds exactly how it was recorded in the concert hall. It draws on an algorithm that Audi has developed jointly with the Fraunhofer Institute. It is matched by a new standard of telephony in the A8 thanks to Audi phone box with Voice over LTE – a standard the user will experience both in operation and in the sound and connection quality.

World premiere: the pilot-driving Audi A8

The new A8 is the first production automobile to have been developed specially for highly automated driving. The Audi AI traffic jam pilot takes charge of driving in slow-moving traffic at up to 60 km/h (37.3 mph) on freeways and highways where a physical barrier separates the two carriageways. The system is activated using the AI button on the center console.

The traffic jam pilot manages starting, accelerating, steering and braking. The driver no longer needs to monitor the car permanently. They can take their hands off the steering wheel permanently and, depending on the national laws, focus on a different activity that is supported by the car, such as watching the on-board TV. As soon as the system reaches its limits, it calls on the driver to take back control of the task of driving.

From a technical perspective the traffic jam pilot is revolutionary. During piloted driving, a central driver assistance controller (zFAS) now permanently computes an image of the surroundings by merging the sensor data. As well as the radar sensors, a front camera and the ultrasonic sensors, Audi is the first car manufacturer also to use a laser scanner. The introduction of the Audi AI traffic jam pilot means the statutory framework will need to be clarified in each individual market, along with the country-specific definition of the application and testing of the system. The brand’s high quality standards are equally applicable in the realm of highly automated driving. In addition, a range of approval procedures and their corresponding timescales will need to be observed worldwide. Audi will therefore be adopting a step-by-step approach to the introduction of the traffic jam pilot in production models.

The Audi AI remote parking pilot and the Audi AI remote garage pilot steer the A8 independently into and out of a parking space or garage, monitored by the driver. The driver need not be sitting in the car. They start the appropriate system from their smartphone using the new myAudi app. To monitor the parking maneuver, they hold the Audi AI button pressed to watch a live display from the car’s 360 degree cameras on their device. Once the maneuver has been completed, the system automatically engages the tiptronic P position and switches off engine and ignition.

New dimension: the suspension

With a whole package of innovations, the suspension revisits the very limits of what is physically possible. One such innovation is dynamic all-wheel steering, which combines direct, sporty steering with unshakable stability. The steering ratio for the front wheels varies as a function of speed; the rear wheels are turned in or against the direction of steering depending on the speed range. The car’s handling becomes even more dynamic and precise with the sport differential. This actively distributes the drive torque between the rear wheels, complementing the quattro permanent all-wheel drive that is now standard in the new A8.

The second new technology, Audi AI active suspension, is a fully active suspension system. Depending on the driver’s wishes and the driving situation, it is capable of raising or lowering each wheel separately with electric actuators. This flexibility imparts the driving characteristic with huge latitude – ranging from the smooth ride comfort of a classic luxury sedan to the dynamism of a sports car. In combination with pre sense 360°, the car is raised with lighting speed if there is an impending lateral collision, reducing the potential consequences of the accident for all occupants. This highly innovative suspension system obtains the energy it requires from a 48-volt electrical system. Audi now for the first time fits it as the primary electrical system in all model versions of the A8. In conjunction with the advanced air suspension for the A8, the innovative suspension concept delivers an utterly new driving experience.

Mild hybrid and e-tron: the drives

The new A8 starts out in the German market with two extensively reengineered V6 turbo engines: a 3.0 TDI and a 3.0 TFSI. The diesel develops 210 kW (286 hp), and the gasoline version 250 kW (340 hp). Two eight-cylinder versions – a 4.0 TDI with 320 kW (435 hp) and a 4.0 TFSI with 338 kW (460 hp) – will follow slightly later. The exclusive top engine version is the W12 with a displacement of 6.0 liters. (These vehicles are not yet on sale. They do not yet have type approval and are therefore not subject to Directive 1999/94/EC.)

All five engines operate in conjunction with a belt alternator starter (BAS), which is the nerve center of the 48-volt electrical system. This mild hybrid technology (MHEV, mild hybrid electric vehicle) enables the car to coast with the engine switched off, and to restart smoothly. It also has an extended start/stop function and an energy recovery output of up to 12 kW. The combined effect of these measures is to bring down the fuel consumption of the already efficient engines even further – by as much as 0.7 liters (0.2 US gal) per 100 kilometers (62.1 mi) in real driving conditions.

The A8 L e-tron quattro with its powerful plug-in hybrid drive will follow at a later date (This vehicle is not yet on sale. It does not yet have type approval and is therefore not subject to Directive 1999/94/EC.): Its 3.0 TFSI and the powerful electric motor achieve 330 kW (449 hp) of system power and 700 Nm (516.3 lb-ft) of system torque. The lithium-ion battery stores enough power for about 50 kilometers (31.1 mi) of electric driving. It can optionally be charged by Audi Wireless Charging. A pad in the garage floor transfers the power inductively to a receiver coil in the automobile with a power output of 3.6 kW.

The new Audi A8 and A8 L are being built at the Neckarsulm site and will appear on the German market in late fall 2017. The starting price for the A8 is EUR 90,600, with the A8 L starting at EUR 94,100.

Facts and Figures

Shape. Shift. Sense. Space. These four terms summarize the new Audi A8 with all its characteristics. Shape denotes the aesthetic qualities that the customer sees and feels – the exterior and interior design, the lighting, the colors and materials, as well as the traditional craftsmanship with which they are worked. Shift describes the new level at which the Audi A8 operates. This means the engines, the power transmission, the suspension and also the functions that come under the umbrella of Audi AI – the traffic jam pilot, the (remote) parking pilot and the remote garage pilot.

Sense stands for connectivity. The term refers to the MMI touch response operating and display concept including voice control, and to the electronic intelligence used by everything from sensors and control units to assistance systems. The topics of Infotainment, Audi connect key and personalization are another focal area. Finally, Space describes the dimensional concept for exterior and interior as well as the array of comfort solutions for air quality, seating, sound and telephony.

Audi A8

Shape

  • EXTERIOR DESIGN:Premiere for the new Audi design language, the fluidly muscular vehicle body, the upright, very wide Singleframe grille that conveys status and prestige
  • quattro drive emphasized by prominent muscular shapes above the wheels
  • Gently inclined rear end with wide light strip
  • Twelve exterior colors, including three new paint finishes for Audi
  • LIGHTS: Optional progressive HD Matrix LED headlights in latest version, Audi laser lighting, homogeneous-beam OLED rear lights
  • Dynamic light presentation by headlights and rear lights upon locking and unlocking, interior lighting scenario and audio jingle for engine start
  • INTERIOR DESIGN: Clear formal idiom, reduction as aesthetic design principle, fusion of interior architecture and operating concept
  • Large, two-section panoramic sunroof in A8 L for pleasant, light-filled interior
  • Calm surface design: visually almost fully integrated 10.1-inch screen, number of buttons kept small, electric shutters for air vents
  • Ambient lighting, contour lighting in the seat backs, Matrix LED reading lights
  • Wide selection of authentic, near-natural materials, progressive colors, finished with meticulous craftsmanship; new leather quality for comfort head restraints; Audi design selection as top-end equipment

Shift

  • DRIVE: Two V6 turbo engines (at sales start): 3.0 TDI and 3.0 TFSI with 210 kW (286 hp) and 250 kW (340 hp) respectively
  • Two V8 turbo engines (after market launch): 4.0 TDI with 320 kW (435 hp) and 4.0 TFSI with 338 kW (460 hp); W12 with 430 kW (585 hp) as top engine version
  • All engines with 48-volt primary electrical system and mild hybridization by belt alternator starter as well as the A8 L e-tron quattro permit coasting with the engine off, extended start/stop operation and a high energy recovery output; complemented by efficiency assistant to promote an economic driving style
  • All engines except for 3.0 TFSI with active engine mounts to absorb vibration; 4.0 TFSI, 3.0 TFSI e-tron and W12 also with Active Noise Cancellation (ANC)
  • After market launch, A8 L e-tron quattro with a 330 kW (449 hp) system power and electrical range of approx. 50 kilometers (31.1 mi), inductive in-car charging at 3.6 kW by Audi Wireless Charging (AWC) as standard, charging station optional
  • All engine versions with second-generation eight-speed tiptronic with modified gearshift process for re-engaging after coasting and quattro permanent all-wheel drive
  • SUSPENSION: Front and rear suspension both taking form of high-precision five-link layouts
  • Dynamic all-wheel steering optional
  • If desired, sport differential for even more dynamic handling
  • adaptive air suspension with hydraulically controlled dampers as standard, four selectable ride height levels
  • Fully active controlled Audi AI active suspension as option; acts separately on each wheel and permits extremely high spread of profiles from comfortable to sporty; improves passive safety by raising body in event of lateral collision in conjunction with pre sense 360°
  • Next-stage electronic suspension platform (ESP) for central signal data processing and driving status calculation
  • AUDI AI: Innovative technologies brought together under the Audi AI label. Traffic jam pilot as world-first solution for highly automated driving in nose-to-tail traffic at up to 60 km/h (37.3 mph) on freeways and highways where a physical barrier separates the two carriageways; plus parking and garage pilot with remote function for driverless parking

Sense

  • CONNECTIVITY: 360° monitoring of surroundings using combination of sensors, cameras and, in a first for the automotive sector, laser scanners
  • Permanent merging of data in central driver assistance controller (zFAS)
  • 41 driver assistance systems represent the new gold standard, including new crossing assist for identifying crossing vehicles with help of optional mid-range radars, as well as maneuvering assist and curb warning
  • Modular Infotainment Platform MIB 2+, K1 unit by NVIDIA with quad-core main processor and 192-core graphics processor; 50 times faster than first-generation MIB
  • State-of-the-art Audi connect range, including the car-to-X services traffic sign recognition and hazard information; complemented by myAudi app as central access point for Audi services
  • Audi connect key for up to five users, access authorization via Android smartphones (NFC communication)
  • Scope for personalizing around 400 functions in six user profiles and one guest profile
  • New MMI touch response OPERATING AND DISPLAY CONCEPT: two touchscreens, a switch strip (optional) and light switch module with tactile and acoustic feedback, intelligent handwriting input with whole-word and multi-finger recognition
  • Natural voice control with intelligent combination of on-board and cloud search information; self-learning dialog manager permits progressive voice dialogs
  • Main functions can be controlled from steering wheel
  • New Audi virtual cockpit with full HD resolution (1,920 x 720 pixels)
  • Optional head-up display
  • Navigation with self-learning function based on driver preferences; high-intelligence route planning, detailed 3D city models, four map updates per year

Space

  • BODY:
    • Length: 5,172 millimeters (203.6 in) (A8) (+37 millimeters compared with predecessor) 5,302 millimeters (208.7 in) (A8 L) (+37 millimeters compared with predecessor) Width: 1,945 millimeters (76.6 in) (A8 and A8 L) (-4 millimeters compared with predecessor) Height: 1,473 millimeters (58.0 in) (A8) (+13 millimeters compared with the predecessor model) 1,488 millimeters (58.6 in) A8 L) (+17 millimeters compared with the predecessor model) Wheelbase: 2,998 millimeters (118.0 in) (A8) (+6 millimeters compared with the predecessor model) 3,128 millimeters (123.1 in) (A8 L) (+6 millimeters compared with the predecessor model)
  • Audi Space Frame using intelligent multi-material construction principle with carbon (rear panel), magnesium (strut-tower bar), hot-stamped steel (cabin) and aluminum, rigidity up to 24 percent higher compared with predecessor model, low noise level
  • INTERIOR CONCEPT: Sense of spaciousness, greater interior length (+32 millimeters / 1.3 in) as well as more head and leg room, larger entries than on predecessor model
  • Luxury comfort: electric door openers, new seats with further-improved massage function and extra-soft leather on the comfort head restraints; optionally multi-adjustable relaxation seat in A8 L including footrest with heating and massage function
  • Armrests in the doors, center armrest at front and rear, plus steering wheel optionally with heating
  • Rear seat remote operating unit for controlling many functions including Matrix LED reading lights
  • 3D sound available for first time in rear, top transmission quality for telephony

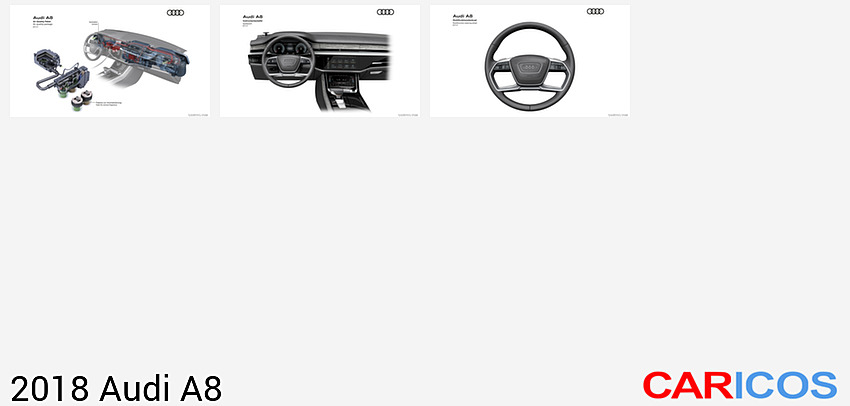

  • Two fragrances to improve air quality, air quality package with ionizer
  • Additional sun sensor on rear shelf to optimize air conditioning when sunlight shining into car from behind

Shape

Doyen of Audi style: the exterior design

Sports appeal, lightweight construction and quattro – the design of the new A8 perfectly conveys Audi’s fundamental values. It embodies sporting elegance, sophistication and progressive status. The new flagship model takes the brand into a new design era.

The hexagonal Singleframe grille dominates the sedan’s upright front end. With its low position and width, it determines all adjoining lines and surfaces. The headlight shapes merge perfectly with the Singleframe. With the optional HD Matrix LED headlights, the daytime running lights are a visual extension of the grille’s top lamella. The segmented light signature divides the headlights horizontally, creating an elegant overall impression. Substantial chrome frames surround the air inlets, with a flat center inlet connecting them.

The side view with the coupé-like silhouette highlights the sporty character of the new A8. Its proportions accentuate both the front and rear wheels – prominent muscular shapes above the wheels are pointers to the brand’s quattro DNA. The low shoulder line starts right up at the headlights and runs across the door handles as far back as the rear lights. A fold below the window capping also emphasizes length. The sill rises to the rear in typical Audi style and lends the new A8 a dynamism worthy of a luxury-class car.

The rear end is inclined slightly in the direction of travel, appearing to push the sedan along even when stationary. The defining element of a lighting strip extends across the entire width. It radiates high intrinsic value thanks to the embedded chrome strip. The segmented OLEDs adjoin at its ends and combine to form a signature. Another chrome strip in the lower part of the bumper integrates the trapezoidal trims of the exhaust system.

There is a choice of twelve colors for the A8, including the new Audi colors Terra Gray, Vesuvius Gray and Seville Red. The colors Impala Beige and Navarra Blue are available for the A8 for the first time. Via the Audi exclusive program, customers can also have the luxury sedan supplied in a color of their personal choice. For those who want their car to create an even more striking visual impact, there is the option of a chrome exterior package.

HD Matrix LED, laser, OLED: the lighting

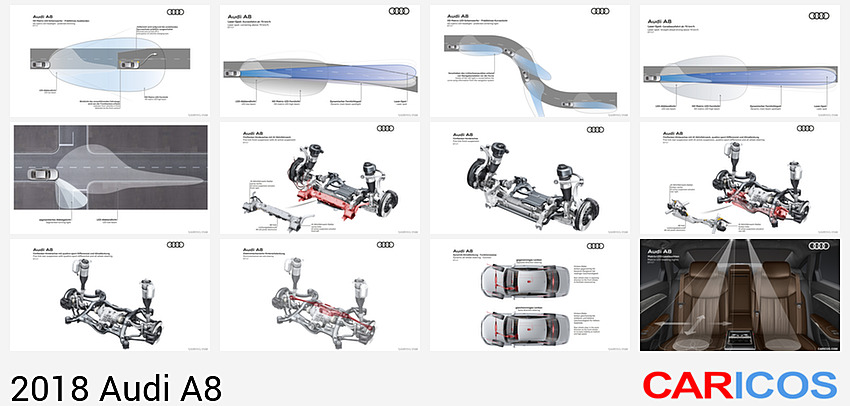

Audi leads the way in lighting technology and design. In the new A8, the technologies interact intelligently with the surroundings. For example, Audi laser lighting is used here for the first time with HD Matrix LED high beams. The laser spot is identified by an X-shape shutter and is also accentuated by blue ambient lighting. The daytime running lights with the vertical segments emphasize the technical elegance of the headlights. The laser spot is activated from a speed of 70 km/h (43.5 mph) and doubles the range of the high beam.

Each HD Matrix LED high-beam unit consists of 32 small, individually controlled light-emitting diodes that project the light in two lines. This new configuration ensures that the A8 provides even more dynamic and precise illumination together with the variable-control low-beam headlights. The light cone blanks out exclusively other road users, so as not to dazzle them. The high-precision control for the HD Matrix LED high beam is based on data supplied by the front camera.

Cornering light is produced by displacing the light’s focal point. It uses the navigation data to shine into a bend just before the steering is turned. The junction light equally comes on predictively just before a junction is reached. The segmented turning light also comes on dynamically in three stages up to a maximum angle of 90°. With all its functions complete with dynamic turn signals, each HD Matrix LED headlight incorporates 138 LEDs and one high-performance laser diode. The innovative automatic lighting prevents incorrect operation and is controlled from a new light switch module with proximity sensors and touchscreen surface.

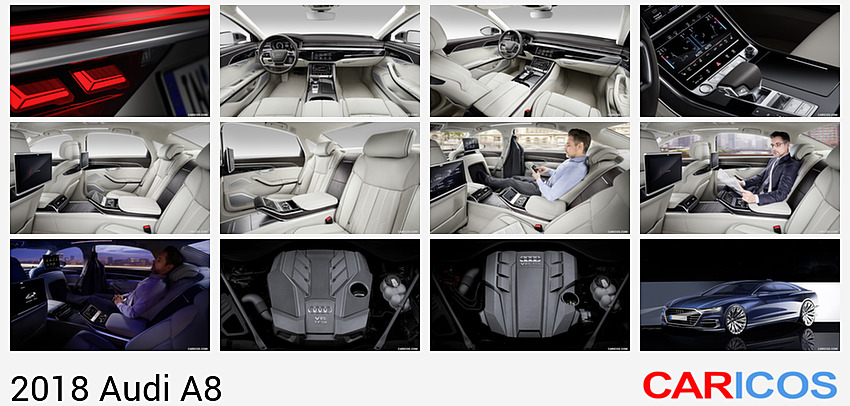

Together with the high-end headlights, Audi supplies OLED rear lights that emit extremely smooth light. There are four ultra-flat OLEDs floating in each module, sub-divided into four individually controlled segments. Two on each side form the angular tail lights, and the other two act as the brake lights.

Below the OLEDs there is also an LED light strip that adapts to ambient brightness when the brakes are applied. The same goes for the dynamic turn signal lights positioned directly below them. There are 135 light-emitting diodes in operation in each rear light.

The lights give the new A8 exceptional presence at the very first glance. This is substantially down to the animated dynamic lighting functions. They present the luxury sedan in a unique manner when it is unlocked with the remote control key. First a point of light in the headlights runs from the outside inwards, then the blue LED on the laser spot lights up, and finally the side lights come on from the inside outwards.

Two loops with the same dynamic aesthetics run in parallel in the OLED rear lights: The light runs in a circle, initially dimmed and then at full brightness. The light presentation continues inside when the door is opened. This is accompanied by a short audio jingle. When the driver locks and leaves the new A8, the light presentation in the headlights and rear lights runs in the opposite sequence.

Comprehensive spatial experience: the interior design

A new dialog between technology and aesthetics – the interior of the A8 presents a comprehensive spatial experience. The architecture blends seamlessly with the new operating concept, which has virtually eliminated buttons and controls. The clean, expansive surfaces convey the relaxed atmosphere of a luxury lounge. Tranquility and reduction are fundamental aesthetic values in the brand’s new flagship model.

Inside the large sedan, the lines flow elegantly and create clear, horizontally oriented volumes. They accentuate the freedom that the new A8 offers its passengers. The applications in the sculptural instrument panel are available in a choice of wood veneer or piano finish and create the wrap-around – the large arc running across the door trims and into the rear. This zone accommodates the air vents, which are concealed by shutters when inactive. If the automatic air conditioning is set directly to the interior, the shutters are slid up and away electrically while the air vents extend out a few centimeters.

In the lower section of the instrument panel, the central 10.1-inch touchscreen display with black panel technology blends almost invisibly into the high-gloss black trim. Depending on the equipment, it is in slate gray with a technical structure or in dark, matt-brushed aluminum. On the center tunnel console, which continues the black-panel look, there is a second touchscreen display measuring 8.6 inches. The buttons on its bottom edge optionally blend in with the display look to present a continuous touchscreen surface. They provide the user with tactile and acoustic feedback as from a conventional switch. The same applies to the light switches and the controls on the air vents.

As an option, two LED light guides each on the center tunnel, instrument panel and in the doors create a fitting lighting atmosphere in the interior. They create contour and ambient lighting with separate brightness and color control as an elegant way of accentuating the design lines. On the A8 L, the backs of the comfort customized contour front seats also incorporate a contour light strip. The newly developed Matrix LED reading lights each with seven LEDs provide optimum illumination. The passenger can precisely control the brightness, size and focus of the light cone with the rear seat remote control.

Natural and authentic: colors and materials

The interior of the new A8 is notable for its authentic materials. Some of the real wood inlays are open-pored and feel natural to the touch. For its leathers, Audi fundamentally steers clear of chrome tanning – its top-quality unique pieces are natural materials tanned with plant-based products, can breathe actively and are hand-crafted. The comfort head restraints are enveloped in soft, velvety Cocoon leather, a new upholstery of the highest grade. The harmony of the materials and their naturalness create a new, contemporary impression of luxury. They radiate craftsmanship down to the finest detail, giving them bespoke character; the same applies to the perforation in the seat upholstery.

There are eight material and color schemes in the new A8, culminating in Audi design selection. For the upholstery, the choices are Verdi cloth and the leather grades Valetta, Valcona and Unicum. These can be supplied in the new colors pearl beige, metropolis gray and merino gray, for example. On selected equipment items, contrasting stitching adds an extra highlight. In addition, depending on version the instrument panel comes in a two-color design. There are various veneers, ranging from beech and eucalyptus to burr walnut and black piano finish. Finally, those wishing to enhance their A8 to their personal taste will find an extensive selection of other exclusive veneers, colors, materials and leather upholstery and trim in the Audi exclusive program.

Shift

Even more efficient: engines with MHEV technology

At its market introduction in Europe, the new A8 will start out with two extensively reengineered V6 turbo engines, a 3.0 TDI with 210 kW (286 hp) and a 3.0 TFSI with 250 kW (340 hp). The two V8 versions will follow: The 4.0 TDI develops 320 kW (435 hp), and the 4.0 TFSI has a power output of 338 kW (460 hp). Also appearing later on is the W12 for the A8 L, developing 430 kW (585 hp). (These vehicles are not yet on sale. They do not yet have type approval and are therefore not subject to Directive 1999/94/EC.) All engines offer supreme refinement, ample performance and high efficiency. The new mild hybrid technology (MHEV, mild hybrid electric vehicle) drives down fuel consumption even further – by as much as 0.7 liters (0.3 US gal) of fuel per 100 kilometers (62.1 mi) in real driving conditions. Particulate filters for the gasoline engines will follow in 2018.

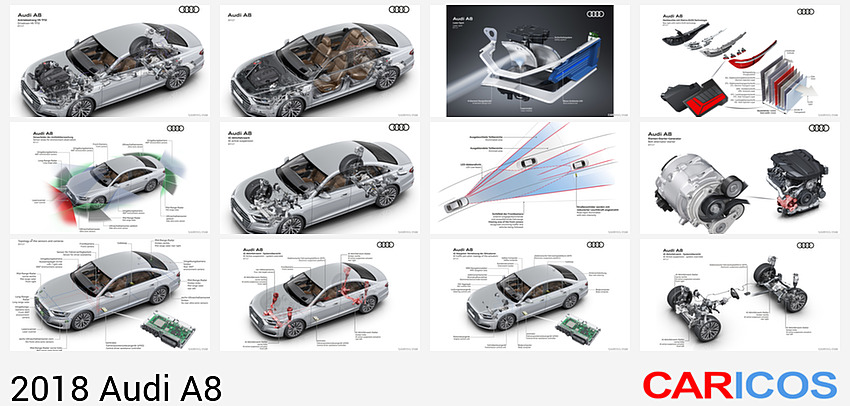

Audi’s MHEV technology is based on a newly developed 48-volt primary electrical system – it supplies the 12-volt system that now becomes an electrical subsystem. The 48-volt system is fed by a belt alternator starter (BAS) connected to the engine’s crankshaft by the belt drive. A lithium-ion battery positioned safely beneath the luggage compartment floor serves as the storage unit.

The new drive combines efficiency with comfort in a very special way: Thanks to the higher voltage, the new A8 can coast along silently in a speed range from 55 through 160 km/h (34.2 through 99.4 mph). The automobile then proceeds with zero emissions for up to 40 seconds with the engine off altogether. As soon as the driver steps on the gas again, the belt alternator starter prompts a swift but soft restart. In addition, start/stop operation is actually active from 22 km/h (13.7 mph). When the brakes are applied, the BAS can recover up to 12 kW of power, again helping to reduce fuel consumption.

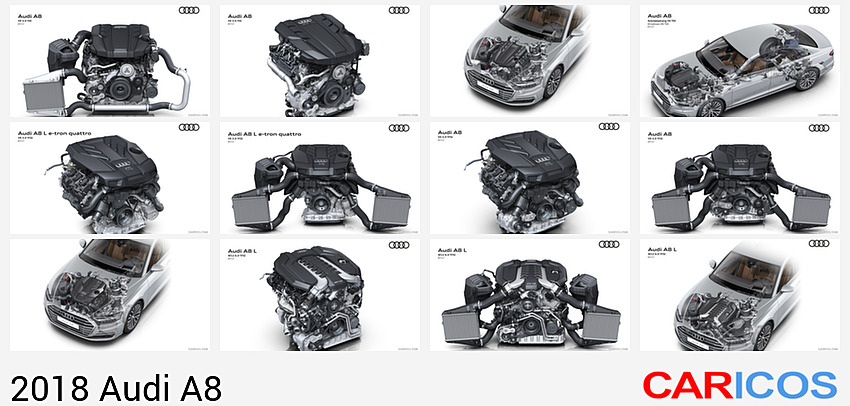

Power and spontaneity: the 3.0 TDI and 3.0 TFSI

Both V6 engines are high-tech units. The 3.0 TDI develops 210 kW (286 hp) from a displacement of 2,995 cm³. Many areas have been extensively reengineered, such as its very sophisticated thermal management. With 600 Nm (442.5 lb-ft) of torque across a rev range from 1,250 to 3,250 rpm, it develops hefty traction. The 3.0 TFSI with a displacement of 2,967 cm³ develops 250 kW (340 hp) and likewise achieves its peak of 500 Nm (368.8 lb-ft) extremely low down the rev range, between 1,370 and 4,500 rpm. Its exhaust end lies inside the 90° vee, so the short gas paths and the twin scroll charger promote responsiveness. Its combustion principle makes the V6 gasoline engine especially efficient. To support it, the Audi valvelift system (AVS) adjusts the intake valve opening times and stroke in two stages based on demand.

Performance and culture: the 4.0 TDI and 4.0 TFSI

Even more performance is on tap with the two four-liter, eight-cylinder engines that are to follow in 2018 – the 4.0 TDI with 320 kW (435 hp) and the 4.0 TFSI with 338 kW (460 hp). They share fundamental technical principles, such as biturbo technology and the Audi valvelift system (AVS). When the gasoline engine is being driven with restraint, the AVS deactivates cylinders 2 3, 5 and 8 by closing their intake and exhaust valves. This reduces fuel consumption and promotes efficiency. On the diesel, AVS operates one exhaust valve in each cylinder. It therefore manages the two turbochargers, which – unlike on the TFSI – are switched sequentially. For better filling of the combustion chambers, there is likewise an intake AVS on the TDI.

Under load, the 4.0 TFSI develops a characteristically sporty sound that is completely free from interfering frequencies. On the V8 gasoline engine, the e-tron and the W12, Active Noise Cancellation (ANC) eradicates these. The system sends specific anti-noise to the sound system’s loudspeakers. In addition, the V8, W12 and 3.0 TDI are fitted with active engine mounts that inhibit the transmission of vibrations to the vehicle body. They, too, generate out-of-phase counterimpulses – their effect is particularly marked when idling.

Exclusive top engine: the W12

The W12 will follow in 2018 in the new A8 L as the supreme, highly refined top engine version. With its two twin scroll turbochargers, it develops 430 kW (585 hp) from a displacement of 5,950 cm3. Its 800 Nm (590.0 lb-ft) of torque is available constantly between 1,300 and 5,000 rpm. Like the 4.0 TFSI, the twelve-cylinder engine features COD (cylinder on demand) technology. At low loads and engine speeds, it shuts down the left-hand cylinder bank to trim fuel consumption.

Comfort and stability: the power transmission

All engines in the A8 deliver their power to a newly developed eight-speed tiptronic. Not only does it change gear swiftly and smoothly; it also operates highly efficiently. An rpm-adaptive torsion damper (RTD) with a centrifugal force pendulum compensates for undesirable vibrations in the engine. This permits efficient driving from an engine speed range as low as 1,000 revolutions per minute.

The improved tiptronic is now for the first time equipped with an electric oil pump – it is activated whenever the large sedan is coasting with the engine off. As soon as the new A8 is coasting and its engine is either deactivated or idling, a clutch in the central transmission is disengaged to interrupt the power flow. For a faster buildup of pulling power, especially after coasting with the engine deactivated, the engineers in partnership with ZF optimized the engagement logic applied in the gearshift process.

The transmission control in the new A8 can for the first time recognize stop & go situations. It now modifies the driving strategy with the emphasis on comfort; for example, it avoids unnecessary gearshifts or starting in second gear. The driver can let the automatic transmission do the work automatically in the E, D and S modes, or can take charge of controlling it in M mode. Selector lever commands are all transmitted electrically.

quattro permanent all-wheel drive is standard in the new Audi flagship model. In normal driving conditions, its self-locking center differential distributes torque between the front and rear axle in a 40:60 ratio. If slip occurs at one axle, it directs up to 70 percent of the drive torque to the front and up to 85 percent to the rear. Handling benefits from wheel-selective torque control whenever a committed driving style is adopted. The intelligent software function brakes the two wheels on the inside of a bend slightly before they can begin to spin.

Customers can also choose the optional sport differential in conjunction with the two V6 and V8 engines as well as the W12. When cornering dynamically, this redistributes the torque between the rear wheels as required – enhancing traction, stability and dynamics. The driver can view a display of the percentage drive torque per wheel in the MMI of the new A8. Compared with the previous model, the sport differential is around one kilogram (2.2 lb) lighter and offers even faster, higher-precision control. Its management uses the latest generation of the electronic suspension platform (ESP) and is incorporated into the Audi drive select handling system. This allows the driver to experience a range of chassis settings in one and the same car. The operating principle of the participating systems can be set using the comfort, auto, dynamic, efficiency and individual modes.

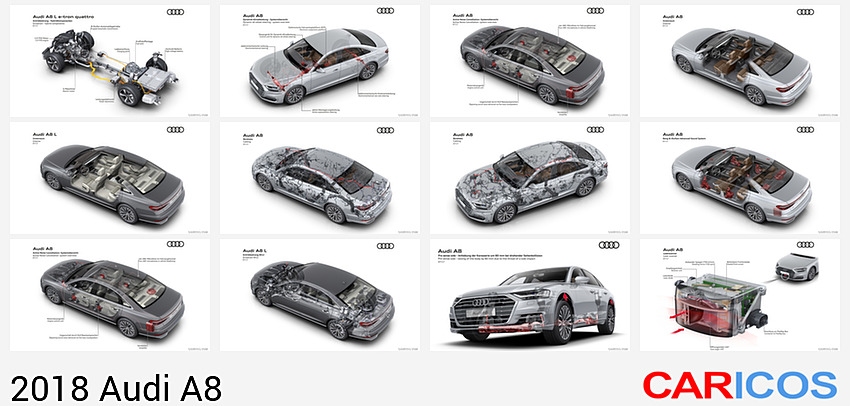

Plug-in hybrid de luxe: the Audi A8 L e-tron quattro

A few months after the debut of the new car line, the A8 L e-tron quattro will join the range (This vehicle is not yet on sale. It does not yet have type approval and is therefore not subject to Directive 1999/94/EC.) After the A3 Sportback e-tron (combined fuel consumption in l/100 km: 1.8 – 1.6; combined energy consumption in kWh/100 km: 12.0 – 11.4; combined CO2 emissions in g/km: 40 – 36*) and the Q7 e-tron 3.0 TDI quattro (combined fuel consumption in l/100 km: 1.9 – 1.8; combined energy consumption in kWh/100 km: 19.0 – 18.1; combined CO2 emissions in g/km: 50 – 48*) it is the brand’s third plug-in hybrid model.

Its 3.0 TFSI and the electric motor, which is integrated into the eight-speed tiptronic together with the separating clutch, generates 330 kW (449 hp) of system power and 700 Nm (516.3 lb-ft) of system torque. The sprint from zero to 100 km/h (62.1 mph) takes 4.9 seconds, and the top speed is electronically limited to 250 km/h (155.3 mph).

The lithium-ion battery beneath the luggage compartment floor stores 14.1 kWh of energy. It consists of a flat block of 104 cells and barely reduces the space available for luggage. In all-electric mode the A8 L e-tron quattro can cover about 50 kilometers. (31.1 mi) (This vehicle is not yet on sale. It does not yet have type approval and is therefore not subject to Directive 1999/94/EC.)

The hybrid management takes charge of the efficiency-optimized management of the combustion engine and electric motor. When started, the A8 L e-tron quattro runs in the all-electric mode; the combustion engine cuts in automatically as the situation requires. The active driving pedal with variable pressure point gives the driver feedback on the maximum available power for electric driving. They can select various hybrid modes at the EV button. These comprehensively affect the driving properties – regardless of whether the driver wants to use the energy stored in the battery straight away or save it for later.

If route guidance is activated in the navigation system, the predictive operating strategy is also activated. It uses map data plus a new standard of real-time traffic information, and adapts energy management to reflect the route ahead. For example, when driving along the freeway it is possible to protect or even increase the amount of electrical energy stored. This will then enable the A8 L e-tron quattro to cover a city driving route with zero local emissions.

The predictive efficiency assistant promotes a fuel-saving driving style by incorporating navigation data, connect information such as traffic sign recognition online, and information from the on-board sensors. The driver sees the recommendations displayed in the Audi virtual cockpit. In addition, pulsating of the driving pedal now draws the driver’s attention to such messages. In conjunction with the adaptive driving assistant (ADA), the car is the only one among the competition to respond to speed limits, bends, junctions and roundabouts without driver intervention, and now slows down or speeds up accordingly. The driver always ultimately always remains in control – whether they choose all-electric driving, which is possible at up to 135 km/h (83.9 mph), or want to use the combined power of the electric motor and TFSI. When the driver takes their foot off the accelerator, the large sedan starts to coast whenever that is the best energy strategy. During moderate deceleration it uses the electric motor as an alternator and therefore as an engine brake. This enables the Audi A8 to recover a substantial amount of energy. The hydraulic wheel brakes are only called upon for harder brake applications. In the tiptronic’s S program, the electric motor provides maximum boost torque to assist propulsion.

The market introduction of the A8 L e-tron quattro (This vehicle is not yet on sale. It does not yet have type approval and therefore does not comply with Directive 1999/94/EC.) also marks the debut of Audi Wireless Charging (AWC). This new, convenient charging technology involves a floor pad inducing an alternating current in the secondary coil installed in the car, under the front axle. The magnetic field presents no danger whatsoever – it is only created when the A8 L e-tron quattro is positioned above the pad and the charging process is active. To facilitate parking for the driver, the MMI shows the position of the charging station. Before the charging process starts at 3.6 kW, the pad is raised to reduce the distance between it and the car, and achieve a high charging efficiency of over 90 percent from mains to battery.

Alternatively customers can charge the battery of the A8 L e-tron quattro using cables at home or at public charging stations – at 3.6 or 7.2 kW, depending on the connected load. In the latter case, the A8 L e-tron quattro is fully charged from an industrial power socket in about two hours. The driver starts the charging process conveniently from the MMI system. Alternatively they can activate it with their smartphone, using the myAudi app that also enables programming of charging timers.

The smartphone also plays an important role in regulating the temperature inside the car. The key component in the automatic air conditioning of the new A8 L e-tron quattro is a heat pump that collects the heat given off by the high-voltage electrical components and provides low-energy heating and cooling. The climate control is highly intelligent. Again using the smartphone app, the driver can specify in detail before setting off how the interior climate should be set. The same applies to the optional steering wheel, seat and windscreen/rear window heating and the seat cooling. In summer, the auxiliary climate control of the A8 L e-tron quattro with electric air conditioning compressor establishes pleasant interior temperatures before a journey. Another option is instant startup of the climate control components as soon as the car is unlocked with the vehicle key.

The A8 L e-tron quattro is identifiable from outside by its special daytime running lights and special wheels. Its Audi virtual cockpit and MMI touch display inform the driver of all important drive parameters and of the settings for charging and for e-tron specific climate control functions.

From silky-smooth to firm: the suspension

Active suspension, dynamic all-wheel steering, electronic suspension platform (ESP) – Audi has rethought every aspect of the chassis of its new flagship. Revolutionary technologies and control systems make it even more comfortable, sporty and safe. It spans a whole new breadth of characteristics – from the silky-smooth progress that befits a luxury sedan to the dynamically firm handling of a sports car.

The very fundamentals of its design are state of the art. The front and rear axle, both of them mounted on subframes, take the form of high-precision five-link constructions made extensively from lightweight aluminum. Both the progressive steering, which becomes more direct the further it is turned, and the adaptive air suspension with controlled damping are standard features. The driver can define the air suspension settings using the three Audi drive select driving profiles comfort, auto and dynamic, and also in a separate lift mode. From a speed of 120 km/h (74.6 mph), the body is automatically lowered by 20 millimeters (0.8 in) for improved aerodynamics. For this to take place, the car must have been running in the auto or dynamic mode continuously for at least 30 seconds.

A new dimension of flexibility: the Audi AI active suspension

Adaptive air suspension already gives the A8 a wide spread of operating characteristics ranging from smooth ride comfort to sporty handling. This impression is heightened engagingly with Audi AI active suspension, which will be available from market launch for the V6 TFSI and the two V8 versions. It is a standard feature on the W12. Audi AI active suspension is a fully active, electromechanically operated suspension system. For each wheel there is one electric motor supplied by the 48-volt primary electrical system. In each case there is also a transmission, a rotary tube housing a titanium roll bar and a lever that exerts up to 1,100 newton-meters (811.3 lb-ft) on the suspension via a coupling rod.

A new feature in active suspension is that the load can be increased or reduced individually on all four wheels, for active control of the body in every driving situation. This introduces a new dimension of flexibility: If the driver selects the dynamic mode in the Audi drive select system, the new A8 becomes an agile sports car – it turns in firmly, and its roll angles are roughly halved compared with the normal status. By contrast, in comfort mode, the body floats smoothly even over rough bumps in the road.

As well as improving comfort and handling, active suspension in combination with crossing assist improves passive safety in the event of a lateral collision. In an impending lateral collision at more than 25 km/h (15.5 mph), the suspension actuators raise the body on the side exposed to the danger by up to 80 millimeters (3.1 in) within half a second. The aim is to present an even more resistant section of the body to the other party by way of an impact zone. The side sills and floor structure accommodate a large portion of the impact forces. Deformation of the cabin and the loads acting on the occupants, above all to the chest and abdomen areas, can be reduced by up to 50 percent compared with a lateral collision with no raising of the suspension. The pre sense 360° system is a requirement for the new function.

Boundaries pushed: dynamic all-wheel steering

There is another world first in the suspension of the new A8: dynamic all-wheel steering. It, too, is controlled by the electronic suspension platform (ESP). The new steering system approaches the steer angle and directional stability as separate issues, once again probing the boundaries of the physically possible. At low speeds and on tight bends, the luxury sedan significantly reduces steering effort. But this is never allowed to unsettle it. The A8 is even unruffled by an abrupt lane change at high speed. The driver always feels intensive, finely differentiated feedback from the road.

The optional dynamic all-wheel steering combines two distinct high-tech steering systems. The dynamic steering on the front axle incorporates what is known as strain wave gearing where the ratio changes as a function of speed. The rear wheels are turned by a spindle drive and two track rods – at low speeds by up to five degrees against the direction of steering, to facilitate maneuvering and reduce the turning circle by about one meter to 11.4 meters (37.4 ft) on the A8 or 11.8 meters (38.7 ft) on the A8 L. At medium and high speeds, the wheels are turned by up to two degrees in the direction of steering, for increased stability. Dynamic all-wheel steering matches the steering ratio optimally to the driving situation, adjusting the ratio across a range of 9.5 to 17. At the limits of driving dynamics or on surfaces that are slippery under one side of the car, dynamic all-wheel steering again stabilizes the new A8 by manipulating the steering at the front and rear axles.

Intelligent and highly integrated: the electronic suspension platform (ESP)

The second generation of the ECP features in the A8. It brings together all signals and data relating to the suspension in a single control unit and offers a new function with the integral driving dynamics controller. It influences the dynamic all-wheel steering, sport differential and active suspension – a new level of integration in the luxury class. The sensors also detect the driving status, such as understeering or oversteering, and the road surface friction. The control unit uses the calculated values to adjust the above components as well as the damper control and air suspension. The customer experiences this in the form of optimum cornering behavior, improved transverse dynamics and ideal ride comfort. The combined algorithms allow faster, more in-depth coordination of the individual systems.

Large and powerful: the wheels and brakes

The powerful brakes with their aluminum fixed calipers on the front axle also make a big contribution to driving safety. The detail features vary from one engine version to another. For the V8 models and the W12, there is the option of perforated carbon ceramic discs measuring 420 millimeters (16.5 in) in diameter. Each caliper on the front wheels has ten brake pistons, or six pistons on the standard version. Electronic Stabilization Control provides even more precise control than in the previous model.

The wheel range starts with an aerodynamically optimized 17-inch wheel, going all the way up to size 9 J x 21 with 275/35 tires. If any of the wheels are not properly tightened, a function integrated into the Electronic Stabilization Control alerts the driver promptly. The loose wheel warning is standard, and unique in the market.

A new level of intelligence: Audi AI

Audi AI is the umbrella term for a new generation of high-end assistance technologies extending all the way up to highly automated driving. Three of them will be available for the first time in the new A8 – the Audi AI traffic jam pilot, the Audi AI (remote) parking pilot and the Audi AI remote garage pilot.

World debut for highly automated driving: the Audi AI traffic jam pilot

With the Audi AI traffic jam pilot, the brand with the four rings presents the world’s first system that enables highly automated driving at Level 3. The car takes over the task of driving in certain situations. Unlike at Level 2, the driver no longer needs to monitor it permanently. They must merely be capable of taking back responsibility whenever the system prompts them to.

The driver activates the traffic jam pilot with the AI button on the center console. On freeways and highways where a physical barrier separates the two carriageways, the system takes over the driving task if the car is traveling at less than 60 km/h (37.3 mph) in nose-to-tail traffic. The traffic jam pilot manages starting, accelerating, steering and braking. It can also handle critical situations such as vehicles cutting in closely in front. The signals that the traffic jam pilot needs for highly automated driving are supplied for instance by the central driver assistance controller (zFAS).

With the traffic jam pilot active, the driver can relax. They can take their hands off the steering wheel permanently and, depending on national laws, focus on a different activity that is supported by the car, such as watch a TV program on the 10.1-inch display in the center console. In this instance the Audi virtual cockpit supplies abstract representations that symbolize the motion and surroundings of the new A8.

During highly automated travel a small camera in the driving area detects if the driver tires or falls sleep. If that happens, a multi-stage warning is given. As soon as the speed rises above 60 km/h (37.3 mph) or the line of vehicles breaks up, the traffic jam pilot informs the driver that they need to take charge of driving once again. If they ignore this prompt and the subsequent warnings, the new A8 is braked to a standstill. The introduction of the Audi AI traffic jam pilot means the statutory framework will need to be clarified in each individual market, along with the country-specific definition of the application and testing of the system. The brand’s high quality standards are equally applicable in the realm of highly automated driving. In addition, a range of approval procedures and their corresponding timescales will need to be observed worldwide. Audi will therefore be adopting a step-by-step approach to the introduction of the traffic jam pilot in production models.

Park and watch: the Audi AI remote parking pilot and garage pilot

With the Audi AI remote parking pilot and the Audi AI remote garage pilot, the A8 drives independently and without a driver into a parallel or right-angle parking space in several maneuvers, or forward into a garage. Both systems access the steering, accelerator, brakes, tiptronic and also the optional dynamic all-wheel steering.

What is new here is the driver is outside the car throughout the entire parking maneuver. They start the maneuver from their smartphone by pressing the Audi AI button in the myAudi app. To monitor it, they hold it pressed and watch a live display from the car’s 360 degree cameras on their device. Once the parking maneuver is over, the system automatically engages the tiptronic P position and switches off engine and ignition. When ready to drive off, the driver can start their A8 by smartphone and drive it out of the parking space or garage again. If the driver is still behind the wheel, they also have the option of activating the parking pilot using the AI button in the center console. Like the AI button in the myAudi app, they again need to hold it pressed throughout the entire process.

The Audi AI (remote) parking pilot and the Audi AI remote garage pilot function intelligently and conveniently. For instance the sedan can also be steered accurately into a garage if it needs to describe an arc. Inside the garage, the A8 can approach very close to the walls and obstructions such as bikes – or it will interrupt entering if there is not enough space for the car. This special function benefits especially from the innovative laser scanner and is not available in any other competitor model.

Sense

Even more efficient: engines with MHEV technology

At its market introduction in Europe, the new A8 will start out with two extensively reengineered V6 turbo engines, a 3.0 TDI with 210 kW (286 hp) and a 3.0 TFSI with 250 kW (340 hp). The two V8 versions will follow: The 4.0 TDI develops 320 kW (435 hp), and the 4.0 TFSI has a power output of 338 kW (460 hp). Also appearing later on is the W12 for the A8 L, developing 430 kW (585 hp). (These vehicles are not yet on sale. They do not yet have type approval and are therefore not subject to Directive 1999/94/EC.) All engines offer supreme refinement, ample performance and high efficiency. The new mild hybrid technology (MHEV, mild hybrid electric vehicle) drives down fuel consumption even further – by as much as 0.7 liters (0.3 US gal) of fuel per 100 kilometers (62.1 mi) in real driving conditions. Particulate filters for the gasoline engines will follow in 2018.

Audi’s MHEV technology is based on a newly developed 48-volt primary electrical system – it supplies the 12-volt system that now becomes an electrical subsystem. The 48-volt system is fed by a belt alternator starter (BAS) connected to the engine’s crankshaft by the belt drive. A lithium-ion battery positioned safely beneath the luggage compartment floor serves as the storage unit.

The new drive combines efficiency with comfort in a very special way: Thanks to the higher voltage, the new A8 can coast along silently in a speed range from 55 through 160 km/h (34.2 through 99.4 mph). The automobile then proceeds with zero emissions for up to 40 seconds with the engine off altogether. As soon as the driver steps on the gas again, the belt alternator starter prompts a swift but soft restart. In addition, start/stop operation is actually active from 22 km/h (13.7 mph). When the brakes are applied, the BAS can recover up to 12 kW of power, again helping to reduce fuel consumption.

Power and spontaneity: the 3.0 TDI and 3.0 TFSI

Both V6 engines are high-tech units. The 3.0 TDI develops 210 kW (286 hp) from a displacement of 2,995 cm³. Many areas have been extensively reengineered, such as its very sophisticated thermal management. With 600 Nm (442.5 lb-ft) of torque across a rev range from 1,250 to 3,250 rpm, it develops hefty traction. The 3.0 TFSI with a displacement of 2,967 cm³ develops 250 kW (340 hp) and likewise achieves its peak of 500 Nm (368.8 lb-ft) extremely low down the rev range, between 1,370 and 4,500 rpm. Its exhaust end lies inside the 90° vee, so the short gas paths and the twin scroll charger promote responsiveness. Its combustion principle makes the V6 gasoline engine especially efficient. To support it, the Audi valvelift system (AVS) adjusts the intake valve opening times and stroke in two stages based on demand.

Performance and culture: the 4.0 TDI and 4.0 TFSI

Even more performance is on tap with the two four-liter, eight-cylinder engines that are to follow in 2018 – the 4.0 TDI with 320 kW (435 hp) and the 4.0 TFSI with 338 kW (460 hp). They share fundamental technical principles, such as biturbo technology and the Audi valvelift system (AVS). When the gasoline engine is being driven with restraint, the AVS deactivates cylinders 2 3, 5 and 8 by closing their intake and exhaust valves. This reduces fuel consumption and promotes efficiency. On the diesel, AVS operates one exhaust valve in each cylinder. It therefore manages the two turbochargers, which – unlike on the TFSI – are switched sequentially. For better filling of the combustion chambers, there is likewise an intake AVS on the TDI.

Under load, the 4.0 TFSI develops a characteristically sporty sound that is completely free from interfering frequencies. On the V8 gasoline engine, the e-tron and the W12, Active Noise Cancellation (ANC) eradicates these. The system sends specific anti-noise to the sound system’s loudspeakers. In addition, the V8, W12 and 3.0 TDI are fitted with active engine mounts that inhibit the transmission of vibrations to the vehicle body. They, too, generate out-of-phase counterimpulses – their effect is particularly marked when idling.

Exclusive top engine: the W12

The W12 will follow in 2018 in the new A8 L as the supreme, highly refined top engine version. With its two twin scroll turbochargers, it develops 430 kW (585 hp) from a displacement of 5,950 cm3. Its 800 Nm (590.0 lb-ft) of torque is available constantly between 1,300 and 5,000 rpm. Like the 4.0 TFSI, the twelve-cylinder engine features COD (cylinder on demand) technology. At low loads and engine speeds, it shuts down the left-hand cylinder bank to trim fuel consumption.

Comfort and stability: the power transmission

All engines in the A8 deliver their power to a newly developed eight-speed tiptronic. Not only does it change gear swiftly and smoothly; it also operates highly efficiently. An rpm-adaptive torsion damper (RTD) with a centrifugal force pendulum compensates for undesirable vibrations in the engine. This permits efficient driving from an engine speed range as low as 1,000 revolutions per minute.

The improved tiptronic is now for the first time equipped with an electric oil pump – it is activated whenever the large sedan is coasting with the engine off. As soon as the new A8 is coasting and its engine is either deactivated or idling, a clutch in the central transmission is disengaged to interrupt the power flow. For a faster buildup of pulling power, especially after coasting with the engine deactivated, the engineers in partnership with ZF optimized the engagement logic applied in the gearshift process.

The transmission control in the new A8 can for the first time recognize stop & go situations. It now modifies the driving strategy with the emphasis on comfort; for example, it avoids unnecessary gearshifts or starting in second gear. The driver can let the automatic transmission do the work automatically in the E, D and S modes, or can take charge of controlling it in M mode. Selector lever commands are all transmitted electrically.

quattro permanent all-wheel drive is standard in the new Audi flagship model. In normal driving conditions, its self-locking center differential distributes torque between the front and rear axle in a 40:60 ratio. If slip occurs at one axle, it directs up to 70 percent of the drive torque to the front and up to 85 percent to the rear. Handling benefits from wheel-selective torque control whenever a committed driving style is adopted. The intelligent software function brakes the two wheels on the inside of a bend slightly before they can begin to spin.

Customers can also choose the optional sport differential in conjunction with the two V6 and V8 engines as well as the W12. When cornering dynamically, this redistributes the torque between the rear wheels as required – enhancing traction, stability and dynamics. The driver can view a display of the percentage drive torque per wheel in the MMI of the new A8. Compared with the previous model, the sport differential is around one kilogram (2.2 lb) lighter and offers even faster, higher-precision control. Its management uses the latest generation of the electronic suspension platform (ESP) and is incorporated into the Audi drive select handling system. This allows the driver to experience a range of chassis settings in one and the same car. The operating principle of the participating systems can be set using the comfort, auto, dynamic, efficiency and individual modes.

Plug-in hybrid de luxe: the Audi A8 L e-tron quattro

A few months after the debut of the new car line, the A8 L e-tron quattro will join the range (This vehicle is not yet on sale. It does not yet have type approval and is therefore not subject to Directive 1999/94/EC.) After the A3 Sportback e-tron (combined fuel consumption in l/100 km: 1.8 – 1.6; combined energy consumption in kWh/100 km: 12.0 – 11.4; combined CO2 emissions in g/km: 40 – 36*) and the Q7 e-tron 3.0 TDI quattro (combined fuel consumption in l/100 km: 1.9 – 1.8; combined energy consumption in kWh/100 km: 19.0 – 18.1; combined CO2 emissions in g/km: 50 – 48*) it is the brand’s third plug-in hybrid model.

Its 3.0 TFSI and the electric motor, which is integrated into the eight-speed tiptronic together with the separating clutch, generates 330 kW (449 hp) of system power and 700 Nm (516.3 lb-ft) of system torque. The sprint from zero to 100 km/h (62.1 mph) takes 4.9 seconds, and the top speed is electronically limited to 250 km/h (155.3 mph).

The lithium-ion battery beneath the luggage compartment floor stores 14.1 kWh of energy. It consists of a flat block of 104 cells and barely reduces the space available for luggage. In all-electric mode the A8 L e-tron quattro can cover about 50 kilometers. (31.1 mi) (This vehicle is not yet on sale. It does not yet have type approval and is therefore not subject to Directive 1999/94/EC.)

The hybrid management takes charge of the efficiency-optimized management of the combustion engine and electric motor. When started, the A8 L e-tron quattro runs in the all-electric mode; the combustion engine cuts in automatically as the situation requires. The active driving pedal with variable pressure point gives the driver feedback on the maximum available power for electric driving. They can select various hybrid modes at the EV button. These comprehensively affect the driving properties – regardless of whether the driver wants to use the energy stored in the battery straight away or save it for later.

If route guidance is activated in the navigation system, the predictive operating strategy is also activated. It uses map data plus a new standard of real-time traffic information, and adapts energy management to reflect the route ahead. For example, when driving along the freeway it is possible to protect or even increase the amount of electrical energy stored. This will then enable the A8 L e-tron quattro to cover a city driving route with zero local emissions.

The predictive efficiency assistant promotes a fuel-saving driving style by incorporating navigation data, connect information such as traffic sign recognition online, and information from the on-board sensors. The driver sees the recommendations displayed in the Audi virtual cockpit. In addition, pulsating of the driving pedal now draws the driver’s attention to such messages. In conjunction with the adaptive driving assistant (ADA), the car is the only one among the competition to respond to speed limits, bends, junctions and roundabouts without driver intervention, and now slows down or speeds up accordingly. The driver always ultimately always remains in control – whether they choose all-electric driving, which is possible at up to 135 km/h (83.9 mph), or want to use the combined power of the electric motor and TFSI. When the driver takes their foot off the accelerator, the large sedan starts to coast whenever that is the best energy strategy. During moderate deceleration it uses the electric motor as an alternator and therefore as an engine brake. This enables the Audi A8 to recover a substantial amount of energy. The hydraulic wheel brakes are only called upon for harder brake applications. In the tiptronic’s S program, the electric motor provides maximum boost torque to assist propulsion.

The market introduction of the A8 L e-tron quattro (This vehicle is not yet on sale. It does not yet have type approval and therefore does not comply with Directive 1999/94/EC.) also marks the debut of Audi Wireless Charging (AWC). This new, convenient charging technology involves a floor pad inducing an alternating current in the secondary coil installed in the car, under the front axle. The magnetic field presents no danger whatsoever – it is only created when the A8 L e-tron quattro is positioned above the pad and the charging process is active. To facilitate parking for the driver, the MMI shows the position of the charging station. Before the charging process starts at 3.6 kW, the pad is raised to reduce the distance between it and the car, and achieve a high charging efficiency of over 90 percent from mains to battery.

Alternatively customers can charge the battery of the A8 L e-tron quattro using cables at home or at public charging stations – at 3.6 or 7.2 kW, depending on the connected load. In the latter case, the A8 L e-tron quattro is fully charged from an industrial power socket in about two hours. The driver starts the charging process conveniently from the MMI system. Alternatively they can activate it with their smartphone, using the myAudi app that also enables programming of charging timers.

The smartphone also plays an important role in regulating the temperature inside the car. The key component in the automatic air conditioning of the new A8 L e-tron quattro is a heat pump that collects the heat given off by the high-voltage electrical components and provides low-energy heating and cooling. The climate control is highly intelligent. Again using the smartphone app, the driver can specify in detail before setting off how the interior climate should be set. The same applies to the optional steering wheel, seat and windscreen/rear window heating and the seat cooling. In summer, the auxiliary climate control of the A8 L e-tron quattro with electric air conditioning compressor establishes pleasant interior temperatures before a journey. Another option is instant startup of the climate control components as soon as the car is unlocked with the vehicle key.

The A8 L e-tron quattro is identifiable from outside by its special daytime running lights and special wheels. Its Audi virtual cockpit and MMI touch display inform the driver of all important drive parameters and of the settings for charging and for e-tron specific climate control functions.

From silky-smooth to firm: the suspension

Active suspension, dynamic all-wheel steering, electronic suspension platform (ESP) – Audi has rethought every aspect of the chassis of its new flagship. Revolutionary technologies and control systems make it even more comfortable, sporty and safe. It spans a whole new breadth of characteristics – from the silky-smooth progress that befits a luxury sedan to the dynamically firm handling of a sports car.

The very fundamentals of its design are state of the art. The front and rear axle, both of them mounted on subframes, take the form of high-precision five-link constructions made extensively from lightweight aluminum. Both the progressive steering, which becomes more direct the further it is turned, and the adaptive air suspension with controlled damping are standard features. The driver can define the air suspension settings using the three Audi drive select driving profiles comfort, auto and dynamic, and also in a separate lift mode. From a speed of 120 km/h (74.6 mph), the body is automatically lowered by 20 millimeters (0.8 in) for improved aerodynamics. For this to take place, the car must have been running in the auto or dynamic mode continuously for at least 30 seconds.

A new dimension of flexibility: the Audi AI active suspension

Adaptive air suspension already gives the A8 a wide spread of operating characteristics ranging from smooth ride comfort to sporty handling. This impression is heightened engagingly with Audi AI active suspension, which will be available from market launch for the V6 TFSI and the two V8 versions. It is a standard feature on the W12. Audi AI active suspension is a fully active, electromechanically operated suspension system. For each wheel there is one electric motor supplied by the 48-volt primary electrical system. In each case there is also a transmission, a rotary tube housing a titanium roll bar and a lever that exerts up to 1,100 newton-meters (811.3 lb-ft) on the suspension via a coupling rod.

A new feature in active suspension is that the load can be increased or reduced individually on all four wheels, for active control of the body in every driving situation. This introduces a new dimension of flexibility: If the driver selects the dynamic mode in the Audi drive select system, the new A8 becomes an agile sports car – it turns in firmly, and its roll angles are roughly halved compared with the normal status. By contrast, in comfort mode, the body floats smoothly even over rough bumps in the road.

As well as improving comfort and handling, active suspension in combination with crossing assist improves passive safety in the event of a lateral collision. In an impending lateral collision at more than 25 km/h (15.5 mph), the suspension actuators raise the body on the side exposed to the danger by up to 80 millimeters (3.1 in) within half a second. The aim is to present an even more resistant section of the body to the other party by way of an impact zone. The side sills and floor structure accommodate a large portion of the impact forces. Deformation of the cabin and the loads acting on the occupants, above all to the chest and abdomen areas, can be reduced by up to 50 percent compared with a lateral collision with no raising of the suspension. The pre sense 360° system is a requirement for the new function.

Boundaries pushed: dynamic all-wheel steering

There is another world first in the suspension of the new A8: dynamic all-wheel steering. It, too, is controlled by the electronic suspension platform (ESP). The new steering system approaches the steer angle and directional stability as separate issues, once again probing the boundaries of the physically possible. At low speeds and on tight bends, the luxury sedan significantly reduces steering effort. But this is never allowed to unsettle it. The A8 is even unruffled by an abrupt lane change at high speed. The driver always feels intensive, finely differentiated feedback from the road.

The optional dynamic all-wheel steering combines two distinct high-tech steering systems. The dynamic steering on the front axle incorporates what is known as strain wave gearing where the ratio changes as a function of speed. The rear wheels are turned by a spindle drive and two track rods – at low speeds by up to five degrees against the direction of steering, to facilitate maneuvering and reduce the turning circle by about one meter to 11.4 meters (37.4 ft) on the A8 or 11.8 meters (38.7 ft) on the A8 L. At medium and high speeds, the wheels are turned by up to two degrees in the direction of steering, for increased stability. Dynamic all-wheel steering matches the steering ratio optimally to the driving situation, adjusting the ratio across a range of 9.5 to 17. At the limits of driving dynamics or on surfaces that are slippery under one side of the car, dynamic all-wheel steering again stabilizes the new A8 by manipulating the steering at the front and rear axles.

Intelligent and highly integrated: the electronic suspension platform (ESP)

The second generation of the ECP features in the A8. It brings together all signals and data relating to the suspension in a single control unit and offers a new function with the integral driving dynamics controller. It influences the dynamic all-wheel steering, sport differential and active suspension – a new level of integration in the luxury class. The sensors also detect the driving status, such as understeering or oversteering, and the road surface friction. The control unit uses the calculated values to adjust the above components as well as the damper control and air suspension. The customer experiences this in the form of optimum cornering behavior, improved transverse dynamics and ideal ride comfort. The combined algorithms allow faster, more in-depth coordination of the individual systems.

Large and powerful: the wheels and brakes

The powerful brakes with their aluminum fixed calipers on the front axle also make a big contribution to driving safety. The detail features vary from one engine version to another. For the V8 models and the W12, there is the option of perforated carbon ceramic discs measuring 420 millimeters (16.5 in) in diameter. Each caliper on the front wheels has ten brake pistons, or six pistons on the standard version. Electronic Stabilization Control provides even more precise control than in the previous model.

The wheel range starts with an aerodynamically optimized 17-inch wheel, going all the way up to size 9 J x 21 with 275/35 tires. If any of the wheels are not properly tightened, a function integrated into the Electronic Stabilization Control alerts the driver promptly. The loose wheel warning is standard, and unique in the market.

A new level of intelligence: Audi AI

Audi AI is the umbrella term for a new generation of high-end assistance technologies extending all the way up to highly automated driving. Three of them will be available for the first time in the new A8 – the Audi AI traffic jam pilot, the Audi AI (remote) parking pilot and the Audi AI remote garage pilot.

World debut for highly automated driving: the Audi AI traffic jam pilot

With the Audi AI traffic jam pilot, the brand with the four rings presents the world’s first system that enables highly automated driving at Level 3. The car takes over the task of driving in certain situations. Unlike at Level 2, the driver no longer needs to monitor it permanently. They must merely be capable of taking back responsibility whenever the system prompts them to.

The driver activates the traffic jam pilot with the AI button on the center console. On freeways and highways where a physical barrier separates the two carriageways, the system takes over the driving task if the car is traveling at less than 60 km/h (37.3 mph) in nose-to-tail traffic. The traffic jam pilot manages starting, accelerating, steering and braking. It can also handle critical situations such as vehicles cutting in closely in front. The signals that the traffic jam pilot needs for highly automated driving are supplied for instance by the central driver assistance controller (zFAS).

With the traffic jam pilot active, the driver can relax. They can take their hands off the steering wheel permanently and, depending on national laws, focus on a different activity that is supported by the car, such as watch a TV program on the 10.1-inch display in the center console. In this instance the Audi virtual cockpit supplies abstract representations that symbolize the motion and surroundings of the new A8.

During highly automated travel a small camera in the driving area detects if the driver tires or falls sleep. If that happens, a multi-stage warning is given. As soon as the speed rises above 60 km/h (37.3 mph) or the line of vehicles breaks up, the traffic jam pilot informs the driver that they need to take charge of driving once again. If they ignore this prompt and the subsequent warnings, the new A8 is braked to a standstill. The introduction of the Audi AI traffic jam pilot means the statutory framework will need to be clarified in each individual market, along with the country-specific definition of the application and testing of the system. The brand’s high quality standards are equally applicable in the realm of highly automated driving. In addition, a range of approval procedures and their corresponding timescales will need to be observed worldwide. Audi will therefore be adopting a step-by-step approach to the introduction of the traffic jam pilot in production models.

Park and watch: the Audi AI remote parking pilot and garage pilot

With the Audi AI remote parking pilot and the Audi AI remote garage pilot, the A8 drives independently and without a driver into a parallel or right-angle parking space in several maneuvers, or forward into a garage. Both systems access the steering, accelerator, brakes, tiptronic and also the optional dynamic all-wheel steering.

What is new here is the driver is outside the car throughout the entire parking maneuver. They start the maneuver from their smartphone by pressing the Audi AI button in the myAudi app. To monitor it, they hold it pressed and watch a live display from the car’s 360 degree cameras on their device. Once the parking maneuver is over, the system automatically engages the tiptronic P position and switches off engine and ignition. When ready to drive off, the driver can start their A8 by smartphone and drive it out of the parking space or garage again. If the driver is still behind the wheel, they also have the option of activating the parking pilot using the AI button in the center console. Like the AI button in the myAudi app, they again need to hold it pressed throughout the entire process.

The Audi AI (remote) parking pilot and the Audi AI remote garage pilot function intelligently and conveniently. For instance the sedan can also be steered accurately into a garage if it needs to describe an arc. Inside the garage, the A8 can approach very close to the walls and obstructions such as bikes – or it will interrupt entering if there is not enough space for the car. This special function benefits especially from the innovative laser scanner and is not available in any other competitor model.

Space

Freedom: the dimensional concept

5,172 millimeters (203.6 in) long, 1,945 millimeters (76.6 in) wide and 1,473 millimeters (58.0 in) high – these are the dimensions of the new A8. It is 37 mm (1.5 in) longer and 13 mm (0.5 in) higher than its predecessor model, but the width is marginally lower. The wheelbase is 2,998 millimeters (118.0 in) (+6 millimeters / +0.2 in). In the long-wheelbase version, this dimension and the overall length gain 130 millimeters (5.1 in), while the height puts on 15 millimeters (0.6 in). On both body versions the track width is 1,644/1,633 millimeters (64.7/63.3 in) (front/rear).

The passengers benefit from the increased dimensions – the new A8 has the biggest interior in its class. On both body versions it has grown in length by 32 millimeters (1.3 in). On the A8 L, there is also more headroom, shoulder room and leg room. The two-section panoramic sunroof gives its interior a more open effect. The luggage compartment has a capacity of 505 liters (17.8 cu ft) on both the A8 and the A8 L.

Expertise in lightweight construction: multimaterial Audi Space Frame

Aluminum, steel, magnesium and carbon fiber reinforced polymer (CFRP): The new A8 uses more materials in its supporting body structure than in any previous Audi production model. The luxury sedan’s torsional rigidity, the critical parameter for precise handling and pleasing acoustics, represents an improvement of up to 24 percent on the predecessor model.

Audi is a pioneer of lightweight automotive construction: The original A8 from 1994 was the first volume-built automobile in the world to have a unitary aluminum body, the Audi Space Frame (ASF). Since then, the brand has built over one million cars using that technology. The body of the new A8 likewise adopts the ASF principle. It is made 58 percent from aluminum components – the classic structure of cast nodes, extruded sections and panels. Their strength has been considerably increased compared with the previous model. The cabin consists of hot-formed steel components, complemented by an ultra-high-strength, torsionally extremely rigid rear panel of CFRP. To absorb the loads and shear forces optimally, the fabric layers in the latter run in different directions, as many as 19 of them criss-crossing. A magnesium strut-tower bar completes the lightweight construction concept.

The new A8 leads its class with finesse in every area of aeroacoustics, too – especially the mirrors and door seals. In addition to sophisticated mounts for the axles and assemblies, the glazing plays a pivotal role here. The optional acoustic glass improves soundproofing still further.

Audi uses 14 different joining techniques to assemble the multimaterial body, including hemming for the door sills. This technology is used to join the aluminum side wall frame to the hot-formed steel sheets at the B-pillar, roof line and sills. It is the very basis for their use. It also results in very narrow flanges and in correspondingly large, convenient entries.

A short action: the electric door lock

Every operating process in the new A8 is easy – even opening the doors. The hand merely need pull the exterior handle through five millimeters (0.2 in) – a microswitch then releases the catch. A few millimeters is likewise all that is required to open a door from the inside. In an emergency, the doors can be opened mechanically from either inside or outside by pulling Bowden cables vigorously.

Audi can supply the electric door lock with the option of a power-latching feature. The luggage compartment cover automatically swings up as standard when released. An electric drive is available as an option. Opening and closing are triggered off here at the push of a button or by foot gesture – in combination with the convenience key.

Full sensory experience: the new luxury slant

Freedom is the defining design feature with a new luxury slant. The new A8 therefore appeals to all senses and blends impressions into a coherent composition. This starts with the very shapes and lines of the interior design, but also extends to the authentic materials of superlative bespoke quality, and culminates in the prepossessing audio experience of the high-end sound system and the subtle lingering impression of the fragrancing.

Indulgent comfort: the seats

The lounge character presented by the interior of the new A8 owes much to the newly designed seats. They are much lighter than on the previous model – the front seats alone trim over four kilograms (8.8 lb) off the weight. Glass fiber-reinforced polymer (GFRP) is used in the rear seats. At both the front and rear, the structure of the seat cushions and backrests with a variety of shaped, comfort and flexible foam layers afford excellent comfort and good lateral support.

Audi supplies the front seats in various different versions. The top version is the comfort customized contour seat. In addition to pneumatic seat and backrest side bolster adjustment, it also comes optionally with heating and ventilation, each with separate three-stage control. The developers have also significantly extended the optional massage function. In each backrest there are 16 small bubble-shaped air pockets, in threes on top of each other. They massage the entire back in a choice of seven programs and three intensity levels. A small compressor on each seat exerts up to 0.5 bar of pressure.

Both A8 body versions – standard and extended wheelbase alike – are built as standard with a three-person rear seat, optionally with through-loading facility or cool box. The outer seats can also be supplied optionally with heating, plus electrical adjustment of the fore/aft position, seat angle and backrest angle. The lumbar support is then pneumatically adjustable. It can likewise be supplied with a massage function with 18 triple air pockets per seat. Comfort head restraints and rear roller blinds add the finishing touches to a sense of relaxed travel. Audi also supplies the same adjustment options as for the three-person rear seat bench for the individual seats in the A8 L with long, continuous center console. It provides an armrest and large storage compartments.

First-class travel: the relaxation seat

The first-class solution in the new A8 is the relaxation seat at the rear right. Its occupant can recline it and rest their feet on an electrically folding surface on the backrest of the special front passenger seat. This provides the option of having the feet warmed and massaged with multiple settings. There are three power levels, two programs and three foot sizes to choose from, also providing full-surface reflexology. The rear passengers can relax their heads against the soft comfort head restraints, which here have electric height adjustment. The relaxation seat package comprises the comfort customized contour seats with ventilation and massage, the long center console with double folding table, the rear seat remote operating unit, Rear Seat Entertainment and four-zone deluxe automatic air conditioning. The thermal comfort packages, a supplementary option, heat the armrests in the doors, the front and rear center armrests, as well as the steering wheel.

Compact-format operating convenience: the rear seat remote

Audi has created the compact rear seat remote especially for the rear compartment. This device resembling a smartphone allows the passengers to operate an array of climate control, seat, lighting, adjustment and media functions via its touchscreen. The device also acts as a convenient remote control for the Audi tablet if the latter is fixed to the reverse of the front seat. Communication with the MMI navigation plus is by Wi-Fi on the new 5 GHz band.

The rear seat remote has a 5.7-inch touchscreen display in OLED technology with full HD resolution. Its aluminum case is very high-quality, and the technology with the T40 processor from NVIDIA is made to withstand the very high temperatures that may be encountered inside the car. The rear seat remote clips into and is charged in the center console on the four-seater A8 and the center armrest in the five-seater. Depending on the rear equipment specification, it is supplied as standard or an option.

The two Audi tablets of the Rear Seat Entertainment are equally exclusive and sturdy. Their 10.1-inch screens have a full HD resolution and the processor is by NVIDIA. The Audi tablets communicate with the MMI navigation plus and the rear seat remote by Wi-Fi. Their users can enter navigation destinations, select media or surf over a Wi-Fi hotspot. The Audi tablets also provide access to the world of Android, complete with the Google Play Store. After a journey, they can continue to be used away from the car on any Wi-Fi network.

As you choose: new phone solutions

It also could not be more convenient to handle phone calls in the new A8. The sedan allows two mobile phones to be connected and used alternately. The MMI navigation plus can save over 4,000 contacts. For the rear, a separate Audi phone box is available for the four and five-seater versions alike. It pairs the passenger’s smartphone wirelessly with the car aerial for guaranteed best reception. It also charges it inductively using the Qi standard. In conjunction with the rear seat remote operating unit, the rear passenger can in addition make phone calls discreetly.

High-resolution 3D sound: the top sound system from Bang & Olufsen

Audi has three sound system offerings. Topping the bill is the 3D Bang & Olufsen Advanced Sound System, now also available for the first time in the rear. An efficient amplifier controls 23 loudspeakers with 1,920 watts; their neodymium magnets produce an airy, high-resolution sound pattern. Precision-perforated aluminum elements adorn the bezels of the door loudspeakers, while LED light guides emit white light. The lens tweeters in the instrument panel are extended electrically – a modern classic feature of Audi.

Four full-range loudspeakers in the A-pillars and in the roof line take care of the high-level spatial dimension. An algorithm computes the signals for them. It is based on a method that Audi has developed jointly with the Fraunhofer Institute. The sound impression makes the interior a world of acoustic experience where the music unfolds exactly how it was recorded in the concert hall.

As an option Audi equips the new A8 with a digital audio tuner for DAB and DAB+. The optional TV tuner equally operates digitally. Its CI+ module permits reception of encrypted channels via a smartcard.

Clean, fresh air on board: the air quality package

The new A8 offers its passengers a thoroughly agreeable climate including when it comes to air – especially with the optional air quality package. This includes fragrancing distributed non-centrally throughout the interior using the air conditioning system’s outlets. The instrument panel conceals two vials containing a hint of sea breeze or mountain air. The customer can adjust the level of intensity of the fragrancing over four stages. The ionizer is also part of the package. It charges the molecules of the interior air electrically with negative ions. These anions attract dust and similar minuscule particles; these then form mini clusters which fall to the floor so are not inhaled.

Next year, a particulate measuring sensor will also be introduced for specific markets. It determines the level of particulates in the ambient air and compares this reading with the air inside the A8. Filter efficiency is displayed on the on-board monitor – an important service especially for customers in urban areas.

The standard air quality sensor also detects harmful gases and activates recirculated air mode as necessary. The filter in the four-zone automatic air conditioning eliminates the bulk of these gases and particulates, and also neutralizes many allergens.

(Audi Press Release)
